Lanying Chat SDK: floo-web API introduction#

Choose a build#

The Lanying Chat frontend Web SDK is available in three builds:

1. Web, intended primarily for desktop browsers and conventional frontend applications;
2. Uni-app, built on the DCloud.io uni-app framework for H5 and Mini Programs including WeChat, Alipay, Baidu, Toutiao, QQ, DingTalk, and Taobao; it can also target iOS, Android, and Quick Apps;
3. WeChat Mini Program, a native build that follows WeChat Mini Program standards and provides the same features as the uni-app build;

The examples below use the Web build; the other builds expose nearly the same API. The DemoApp source is available and is the best reference for a complete integration.

Prerequisites#

1. Download the required SDK file. For desktop Web, use floo-3.0.0.js and reference it in your code.
2. Voice & video requires webrtc-adapter and jquery in the dependencies section of package.json. Install them with yarn or npm.

Initialisation#

Set the App ID first.

    const config = {
      // dnsServer: "https://dns.lanying.chat/v2/app_dns",
      appid: "YOUR_APP_ID",
      ws: false, // The uniapp version needs to be set to true, the web version needs to be set to false
      autoLogin: true
      };

Then create an im object and reuse it throughout the application.

Two approaches are supported:

1. Script form: import the SDK, then call window.flooIM().

    import "floo-3.0.0.js";

    const im = new window.flooIM(config);

This form supports loading the SDK with a script tag in a browser. Because concurrent initialisation is possible, use try-catch-retry as shown in the lanying-im-web source.

1. Module form: import flooim, then call flooim().

    import flooim from 'floo-3.0.0';

    const im = flooim(config);

Base API#

Login

        im.login({
          mobile:String, # Choose either mobile or name
          name:String,
          password:String,
        })

Event listeners
See Event notifications in this document for the complete event list.

        im.on('events', (ret) => {
          //do something with ret
        })
        // or
        im.on({
          eventName: (ret) => {
            //do something with ret
          },
          ...
        })


Unlisten

        im.off('events', (ret) => {
          //do something with ret
        })
        // or
        im.off({
          eventName: (ret) => {
            //do something with ret
          },
        ...
        })


QR code login

      im.qrlogin({
        password,
        user_id
      });


token login

        im.tokenLogin(user_id, token)


userManage#

User registeration

        userManage.asyncRegister({
          username,
          password
        }).then(() => {
          //
        });


Get token of logged-in user

        const token =  im.userManage.getToken();


Get uid of logged-in user

        const cuid = im.userManage.getUid();


Get appid

        const appid = im.userManage.getAppid();


Get recent reply list

        const list = im.userManage.getConversationList();


Send verification code

        im.userManage
        .asyncUserSendSms({
          mobile,
        })
        .then(() => {
          //
        });


Send verification code (in image)

        im.userManage
        .asyncCaptchaSms({
          captcha,
          image_id,
          mobile,
        })
        .then(() => {
          //
        });


Check whether username is available

        im.userManage.asyncUserNameCheck(username).then(() => {
          //
        });


Bind mobile number - bind with signature

        im.userManage.asyncUserMobileBindSign({
            mobile,
            sign,
          }).then(() => {
            //
          });


Login with mobile number and verification vode

        im.userManage.asyncUserMobileLogin({
          captcha,
          mobile
        })
        .then(res => {
          //
        });


Update mobile number

        im.userManage
        .asyncUpdateMobile({ mobile })
        .then(() => {
          //
        });


Update avatar

        im.userManage
        .asyncUpdateAvatar({
          avatar
        })
        .then(() => {
          //
        });


Update nickname

        im.userManage.asyncUpdateNickName({ nick_name }).then(() => {
          //
        });


Get user profile

        im.userManage.asyncGetProfile(true).then(res => {
          //
        })


Update user profile

        im.userManage.asyncUpdateProfile({
          username,
          avatar
        }).then(res => {
          //
        })


Get user settings

        im.userManage.asyncGetSettings().then(res => {
          //
        })


Modify user settings

        im.userManage
        .asyncUpdateSettings({
          "auth_answer": "string",
          "auth_mode": 0,
          "auth_question": "string",
          "auto_download": true,
          "group_confirm": true,
          "id": 0,
          "no_push": true,
          "no_push_detail": true,
          "no_push_end_hour": 0,
          "no_push_start_hour": 0,
          "no_sounds": true,
          "push_nick_name": "string",
          "user_id",
          "vibratory": true
        }).then(() => {
          //
        });


rosterManage#

Get friend id list

        im.rosterManage.asyncGetRosterIdList().then(res => {
          //
        });


Get friend information

        im.rosterManage.asyncGetRosterInfo(state.sid).then(res => {
          //
        })


Get user details by id list

        im.rosterManage.asnycGetRosterListDetailByIds(rosterIdList).then(res => {
          //
        });


Get chat message by id

        const rosterMessages = im.rosterManage.getRosterMessageByRid(uid);


Read message

        im.rosterManage.readRosterMessage(uid);


Delete friend

        im.rosterManage
        .asyncDeleteRoster({ user_id})
        .then(() => {
          alert("Friend deleted");
        });


Get all cached new users

        const userMaps = im.rosterManage.getAllRosterDetail();


Revoke a message, only valid for last 5 minutes

        im.rosterManage.recallMessage(user_id, message_id);


Delete message

        im.rosterManage.deleteMessage(user_id, message_id);


Get number of user's unreads

        const unreadCount = im.rosterManage.getUnreadCount(user_id) :


Set message to unread

        im.rosterManage.unreadMessage(user_id, message_id);


Get friend information

        const roserInfo = im.rosterManage.getRosterInfo(user_id);


Get friend request list

        im.rosterManage
        .asyncGetApplyList({ cursor: "" })
        .then((res = []) => {
          //
        });


Get blacklist

        im.rosterManage
        .asyncGetBlockedlist()
        .then((res = []) => {
          //
        });


Add to blacklist

        im.rosterManage
        .asyncBlockeAdd(user_id)
        .then((res = []) => {
          //
        });


Remove blacklist

        im.rosterManage
        .asyncBlockeRemove(user_id)
        .then((res = []) => {
          //
        });


Request to add friend

        im.rosterManage
        .asyncApply({ user_id, alias })
        .then((res = []) => {
          //
        });


Approve add-friend request

        im.rosterManage
        .asyncAccept({ user_id })
        .then((res = []) => {
          //
        });


Reject friend request

        im.rosterManage
        .asyncDecline({ user_id })
        .then((res = []) => {
          //
        });


Search for user by name

        im.rosterManage
        .asyncSearchRosterByName({ username })
        .then((res = []) => {
          //
        });


Search for user by ID

        im.rosterManage
        .asyncSearchRosterById({ user_id })
        .then((res = []) => {
          //
        });


groupManage#

Get group information

        im.groupManage.asyncGetGroupInfo(group_id, fromServer).then(res => {
          //
        })


Get the group to join

        im.groupManage.asyncGetJoinedGroups().then(res => {
          //
        });


Open group

        // Prepares the information required by the group chat UI.
        im.groupManage.openGroup(group_id);


Get all cached group details

        const allGroupMap = im.groupManage.getAllGroupDetail();


Get group members (asynchronous)

        im.groupManage.asyncGetGroupMembers(group_id, fromServer).then(res => {
          //
        });


Get group members (synchronous)

        const members = im.groupManage.getGroupMembers(group_id);


Get group details by id

        im.groupManage.asyncGetGroupListDetail(groupIds).then(res => {
          //
        });


Get group information

        const groupMessages = rootState.im.groupManage.getGruopMessage(group_id);


Set group message to read

        im.groupManage.readGroupMessage(group_id)


Revoke message

        im.groupManage.recallMessage(group_id, message_id)


Get number of unread group messages

        const unreadCount = im.groupManage.getUnreadCount(group_id);


Get the list of group Admins

        im.groupManage.asyncGetAdminList({ group_id }).then(res => {
          //
        })


Add group Admin

        im.groupManage.asyncAdminAdd({
          group_id,
          user_list
        })
        .then(() => {
          //
        });


Remove group Admin

        im.groupManage.asyncAdminRemove({ group_id, user_list }).then(() => {
          //
        });


Get group announcement details

        im.groupManage.asyncGetAnouncementById( {announcement_id, group_id} ).then(res => {
          //
        });


Delete group announcement

        im.groupManage
        .asyncAnouncementDelete({ group_id, announcement_id })
        .then(() => {
          //
        });


Add group announcement

        im.groupManage.asyncAnnouncementEdit({ title, content, group_id })
        .then(() => {
          //
        });


Group announcement list

        im.groupManage.asyncGetAnnouncementList({ group_id }).then((res = []) => {
          //
        });


Create group

        im.groupManage.asyncCreate({
          name,
          type,
          avatar,
          description,
          user_list,
        })
        .then(() => {
          //
        });


Dissolve group

        im.groupManage.asyncDestroy({ group_id })
        .then(() => {
          alert("You have dissolved this group.");
        });


Get group details

        im.groupManage.asyncGetInfo({ group_id }).then(res => {
          //
        });


Update group avatar

        im.groupManage.asyncUpdateAvatar({
          group_id,
          value,
        })
        .then(() => {
          alert("Avatar updated");
        });


Update group description

        im.groupManage.asyncUpdateDescription({
          group_id,
          value
        })
        .then(() => {
          //
        });


Update group name

        im.groupManage.asyncUpdateName({
          group_id,
          value
        })
        .then(() => {
          //
        });


Get group member

        im.groupManage.asyncGetMemberList(group_id, fromServer).then(res => {
          //
        });


Set do-not-disturb conditions for group message

        im.groupManage.asyncGroupMsgMutemode({
          group_id,
          msg_mute_mode
        })
        .then(() => {
          this.groupInfo.msg_mute_mode = this.groupInfo.msg_mute_mode ? 0 : 2;
        });


Get group blacklist

        im.groupManage.asyncGroupBannedList({ group_id }).then(res => {
          //
        });


Ban group member

        im.groupManage.asyncGroupBab({ group_id, duration, user_list }).then(() => {
          //
        });


Unban group member

        im.groupManage.asyncGroupUnban({ group_id, user_list }).then(() => {
          //
        });


Set whether group members can invite new member

        im.groupManage.asyncUpdateAllowMemberInvitation({
          group_id,
          value
        })
        .then(() => {
          //
        });


Set whether group members can modify group information

        im.groupManage.asyncUpdateAllowMemberModify({
          group_id,
          value
        })
        .then(() => {
          //
        });


Set whether to enable read mode in group

        im.groupManage.asyncUpdateEnableReadack({
          group_id,
          value
        })
        .then(() => {
          //
        });


Set whether group history is visible

        im.groupManage.asyncUpdateHistoryVisible({
          group_id,
          value
        })
        .then(() => {
          //
        });


Set whether need to apply for group joining

        im.groupManage.asyncUpdateRequireadminapproval({
          group_id,
          apply_approval
        })
        .then(() => {
          //
        });


Change group Owner

        im.groupManage.asyncOwnerTransfer({
          group_id,
          new_owner
        })
        .then(() => {
          //
        });


Apply to join group

        im.groupManage.asyncApply({ group_id, reason })
        .then(() => {
          //
        });


Accept/reject group membership application

        im.groupManage.asyncApplyHandle({
          approval: true/false,
          user_id,
          group_id
        }).then(() => {
          //
        });


Get group blacklist

        im.groupManage.asyncGroupBockedlist({ group_id }).then(res => {
          //
        });


Add member to blacklist

        im.groupManage.asyncGroupBlock({ group_id, user_list }).then(() => {
          //
        });


Remove member from blacklist

        im.groupManage.asyncGroupUnblock({ group_id, user_list })
        .then(() => {
          //
        });


Kick out group member

        im.groupManage.asyncKick({ group_id, user_list }).then(() => {
          //
        });


Get group invitation list

        this.im.groupManage.asyncGetInvitationList().then(res => {
          //
        });


Invite member to group

        im.groupManage.asyncInvite({ group_id, user_list }).then(() => {
          /
        });


Accept/reject group invitation

        im.groupManage.asyncInviteHandle({
          approval: true,
          user_id,
          group_id
        }).then(() => {
          //
        });


Quit group

        im.groupManage.asyncLeave({ group_id })
        .then(() => {
          //
        });


Modify group profile

        im.groupManage.asyncUpdateDisplayName({
          group_id,
          value
        })
        .then(() => {
          //
        });


Get the list of group membership requests

        im.groupManage.asncGetApplicationList({ group_list }).then(rs => {
          //
        });


Get group file

        im.groupManage.asyncGetFileList({ group_id }).then((res = []) => {
          //
        });


Delete group file

        im.groupManage.asyncFileDelete({ file_list, group_id }).then(() => {
          //
        });


sysManage#

Send message to friend

        im.sysManage.sendRosterMessage({
          type,
          uid,
          content,
          attachment
        });


Send group message

        im.sysManage.sendGroupMessage({
          type,
          gid,
          content,
          attachment
        });


Group-sent @message

        im.sysManage.sendMentionMessage({
          gid,
          txt,
          mentionAll,
          mentionList,
          mentionedMessage,
          pushMessage,
          senderNickname
        });


Send type status

        im.sysManage.sendInputStatusMessage(roster_id, "nothing"/"typing");


Forward message

        im.sysManage.forwardMessage({
          uid,
          gid, // Choose either uid or gid
          mid,
        });


Request history

        im.sysManage.requireHistoryMessage(roster_id/group_id, mid, amount);
        // mid: message ID to page backwards from; use 0 for the latest message. amount: maximum number of messages to retrieve.


Get all unread messages

        const allAcks = im.sysManage.getAllMessageStatus() || {};


Get upload url of group file

        im.sysManage.asyncGetGroupAvatarUploadUrl({
          group_id,
          "access-token"
        })
        .then(res => {
          //
        });


Get upload address of chat file

        im.sysManage.asyncGetFileUploadChatFileUrl({
          file_type,
          to_id,
          to_type
        })
        .then(res => {
          //
        });


Upload file

        im.sysManage.asyncFileUpload({
          file,
          fileType,
          to_id,
          toType: "chat",
          chatType: "roster"
        })
        .then(res => {
          //
        })


Assemble image path

        const image = im.sysManage.getImage({ avatar, type='roster', thumbnail=true });


rtcManager#

Initiate a rtc call

        im.rtcManage.initRTCEngine({
          server,
          id,
          name,
          receiver,
          caller,
          callId,
          secret,
          pin,
          hasVideo,
          hasAudio,
          remoteAudio,
          getThrough,
          hangupCall
        });

Destroy rtc environment

        im.rtcManage.destroy();

Send RTC message

        im.rtcManage.sendRTCMessage({
          uid,
          content,
          config,
          ext
        });

Join RTC room

        im.rtcManage.joinRoom({
          server,
          id,
          roomId,
          caller,
          pin,
          hasVideo,
          hasAudio,
          remoteAudio,
          getThrough,
          hangupCall
        });

Leave RTC room

        im.rtcManage.leaveRoom();

Publish video audio streams

        im.rtcManage.publish({
          type,
          hasVideo,
          hasAudio,
          width,
          height
        });

Unpublish video audio streams

        im.rtcManage.unPublish();

Subscribe video audio streams

        im.rtcManage.subscribe(sources);

Unsubscribe video audio streams

        im.rtcManage.unSubscribe(id);

Switch local audio mute status

        im.rtcManage.muteLocalAudio(mute);

Switch local video mute status

        im.rtcManage.muteLocalVideo(mute);

Switch remote audio mute status

        im.rtcManage.muteRemoteAudio(stream, mute)

Switch remote video mute status

        im.rtcManage.muteRemoteVideo(stream, mute)

Get Janus Object

        im.rtcManage.getJanusObject()

Get publisher object

        im.rtcManage.getPublishHandler()

Get subscriber object

        im.rtcManage.getSubscribeHandler()

Event notifications#

1. Floo notification

Event name:flooNotice
Event content:({category, desc})
{category: 'loginMessage',desc: 'socket connecting...'} // Start connecting
{category: 'loginMessage',desc: 'socket connect success...'} // Connected
{category: 'loginMessage',desc: 'logining socket service...'} // Start logging in
{category: 'loginMessage',desc: 'login socket failure ......'} // Login failed
{category: 'loginMessage',desc: 'login socket success.....'} // Login succeeded
{category: 'loginMessage', desc: 'getting token...' } //Get token
{category: 'loginMessage',desc: 'token sucecc, getting roster lists..'} // Getting token succeeded, start to fetch friend list
{category: 'loginMessage',desc: 'get roster list failure:' + ex.message} // Friend list fetching failed
{category: 'action', desc: 'relogin' } // Need to automatically login
{category: 'action', desc: 'relogin_manually' }  // Need to manually login
{category: 'conversation_deleted',desc: { id, source:'user_operation' }} // Conversation deleted. id: conversation ID; source: origin
{category: 'userNotice', desc:'PASSWORD_CHANGED'} // User password changed
{category: 'userNotice', desc:'FROZEN'} // User account frozen
{category: 'userNotice', desc:'REMOVED'} // User removed
{category: 'userNotice', desc:'KICK_BY_SAME_DEVICE'} // Signed out by another session on the same device
{category: 'userNotice', desc:'KICKED_BY_OTHER_DEVICE'} // Signed out by a session on another device
{category: 'userNotice', desc:'INFO_UPDATED'} // User information changed:profile or setting
{category: 'userNotice', desc:'DEVICE_LOGIN'} // User's other device logged-in
{category: 'userNotice', desc:'DEVICE_LOGOUT'} // User's other device logged-out
{category: 'userNotice', desc:'DEVICE_ADDED'} // New device notified
{category: 'userNotice', desc:'DEVICE_REMOVED'} // Device removal notified
{category: 'userNotice', desc:'CLUSTER_CHANGED'} // The user's cluster changed; sign in again

1. FlooError

Event name:flooError
Event content:({category, desc})
{category: 'USER_BANNED', desc:'User is banned'}
{category: 'USER_FROZEN', desc:'User is frozen, please contact App Admin.'}
{category: 'APP_FROZEN', desc:'APP is frozen, please login Lanying IM Console for more details.'}
{category: 'LICENSE', desc:'Invalid LICENSE. Check that the service subscription is current.'}
{category: 'LICENSE', desc:'LICENSE user limit exceeded. Upgrade the service plan.'}
{category: 'DNS_FAILED', desc: dnsServer } // DNS error: server unreachable

1. Login failed

Event name: loginFail
Event content: (desc) description of failure cause

1. Login successful

Event name:loginSuccess
Event content:({})

1. Group list updated

Event name:onGroupListUpdate
Event content:()

1. Group member list updated

Event name:onGroupMemberChanged
Event content: (groupId) group ID

1. Group message received

Event name: onGroupMessage
Event content: (meta) Message content

1. The other party is typing

Event name: onInputStatusMessage
Event content: ({ext,from,to})  ext:extension field from: sender's user ID to: receiver's user ID

1. Group @message received

Event name: onMentionMessage
Event content: (meta) Message content

1. Message is re-unread

Event name: onMessageCanceled
Event content: ({uid,mid})  uid: conversation ID, mid: message ID

1. MessageDeleted

Event name: onMessageDeleted
Event content: ({uid,mid})  uid: conversation ID, mid: message ID

1. Message is withdrawn

Event name: onMessageRecalled
Event content: ({uid,mid})  uid: conversation ID, mid: message ID

1. Message status changed: withdrawn/deleted/read

Event name: onMessageStatusChanged
Event content: ({uid,mid})  uid: conversation ID, mid: message ID

1. Message history received

Event name: onReceiveHistoryMsg
Event content: ({next})  next: Get message history key next time

1. Friend info changed

Event name: onRosterInfoUpdate
Event content: (rosterIds)  rosterIds: contact user ID list

1. Friend list changed

Event name: onRosterListUpdate
Event content: (meta) Message content of friend notification

1. Single chat message received

Event name: onRosterMessage
Event content: (meta) Message content of friend notification

1. Message sending status changed

Event name: onSendingMessageStatusChanged
Event content: ({status,mid})  status: delivery status (sending|failed|sent); mid: client-generated client_mid

1. Unread count changed

Event name: onUnreadChange
Event content: (cid)  conversation ID

1. Latest conversation updated

Event name: recentlistUpdate
Event content: ()

1. Group creation notification

Event name: onGroupCreated
Event content: (meta) Content of group notification

1. Group dismissal notification

Event name: onGroupDestoryed
Event content: (meta) Content of group notification

1. Member joining application notification

Event name: onGroupJoined
Event content: (meta) Content of group notification

1. Group joining application approved

Event name: onGroupApplyAccepted
Event content: (meta) Content of group notification

1. Group joining application rejected

Event name: onGroupApplyDeclined
Event content: (meta) Content of group notification

1. Banned in group

Event name: onGroupBaned
Event content: (meta) Content of group notification

1. Unbanned in group

Event name: onGroupUnbaned
Event content: (meta) Content of group notification

1. Received a one-to-one voice & video message

Event name: onRosterRTCMessage
Event content: (meta) Message content of friend notification

Troubleshooting#

1\. flooim cannot be imported and reports

export 'flooim' was not found in '../im/floo-3.0.0'

Update babel.config.js and add sourceType: 'unambiguous':

module.exports = {
    presets: ["@vue/app", {sourceType: 'unambiguous'}],
};

2\. The long module cannot be found and reports

module "third/long" is not defined

This is caused by an fsevent1 installation failure on Windows. See this issue and apply the following workaround:

npm i -f

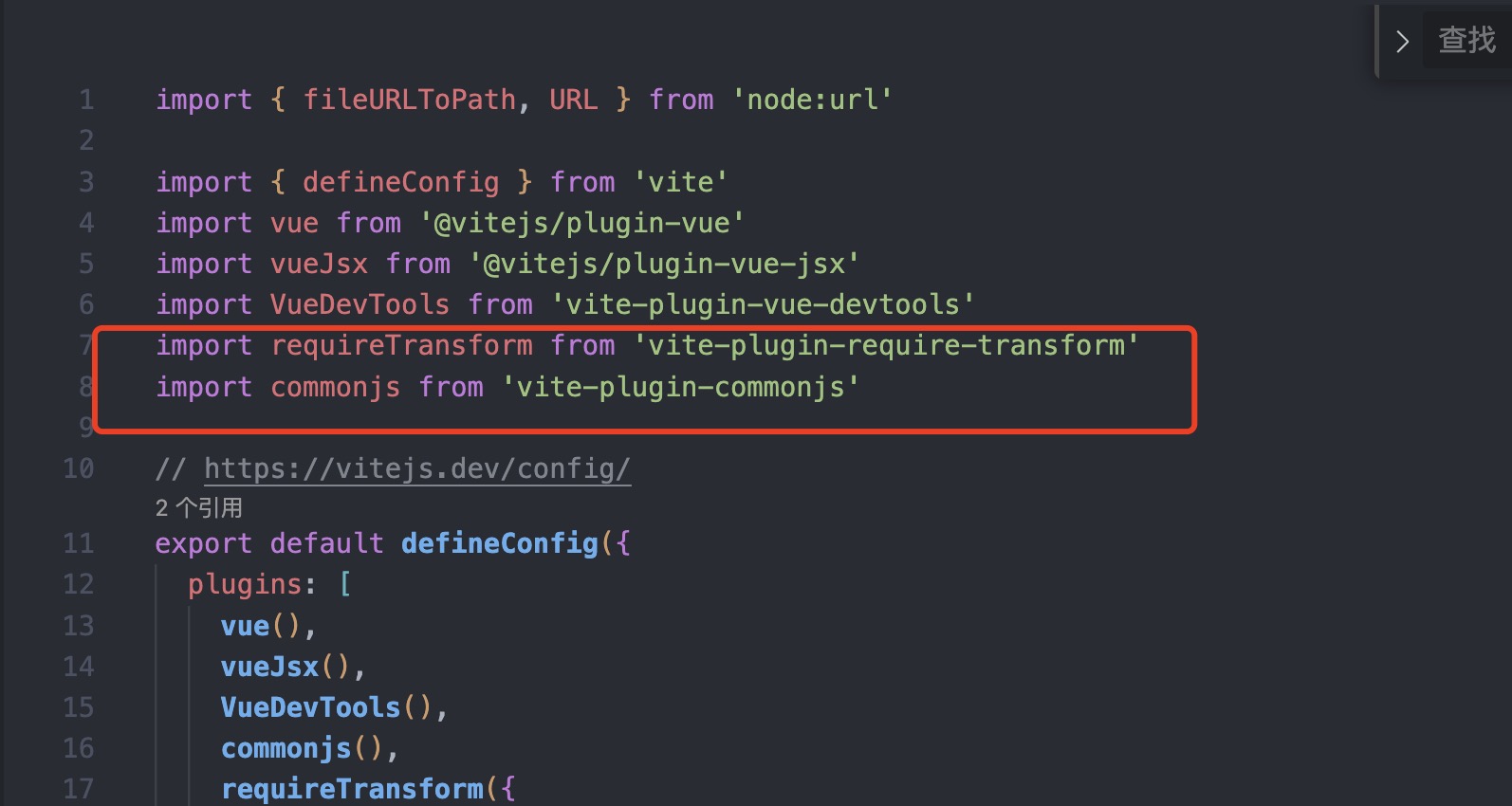

3\. Vue 3 compatibility

The requested module '/src/im/floo-3.0.0.js' does not provide an export named 'default'

Install vite-plugin-commonjs and vite-plugin-require-transform with yarn.
